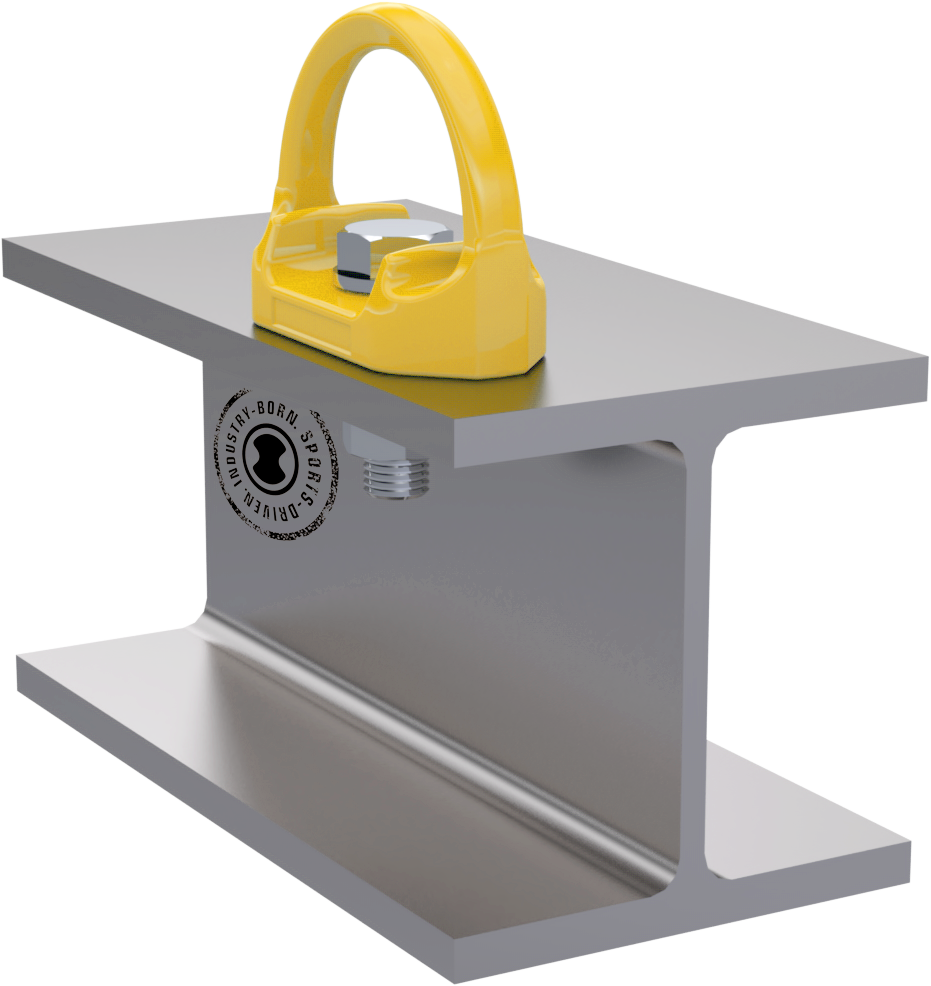

The single anchor point D-BOLT AP-TYP-47 is tested and certified according to EN 795, CEN/TS 16415. It is made of quenched and tempered steel 1.0503, is yellow painted and has been specially developed for use on steel substructures. The steel substructure must comply with the expected loads of min. 14 kN. It is fastened with an M16 hexagon bolt, washer and nut (included in delivery). It can be loaded in all directions and can secure up to three persons with their PPEgA against falling.
- Single anchor point, especially for steel surfaces
- Fastening with M16 hexagon bolt, washer and nut (included in delivery), AK 1, approved for 3 persons
Specifications:
- Material: Steel
- Weight: 0.63 kg
- Maximum Number Of Persons: 3
- Maximum Load: 500 kg
- Colour: Yellow
- Anchor Point Type: Stationary anchor point
- Type Mounting Base: Steel
- Mounting Type: Machine screws
- Thickness Mounting Base: 160mm
-
Rope Access Technique: Yes
- Hole Spacing A: 23mm
- Hole Spacing B: 50mm
- Diameter Bore: 18mm
- Diameter Pillar: 13mm
- Construction Height: 80mm
- Foot Plate Length: 101mm
- Foot Plate Width: 46mm
- Standards: ABZ, CEN/TS 16415, EN 795:2012/A
