The single anchor point D-BOLT AP-TYP-43 is tested and certified according to EN 795, CEN/TS 16415 and has a general technical approval (abZ) from the German Institute for Building Technology (DIBt). It is made of quenched and tempered steel 1.0503, is yellow painted and has been specially developed for use on concrete substrates (grade min. C20/25, dmin.=160 mm). It is fixed by means of an M16 anchor rod with internal thread, which is glued into the concrete using an approved injection mortar (not included)... It is loadable in all directions and can secure up to three persons with their PPEgA from falling. The minimum thickness of the base is 160 mm.
- Single anchor point, especially for concrete substrates (dmin: 160 mm)
- Fixing of the anchor rod with internal thread is done by means of injection mortar (not included in delivery) (adhesive anchors), AK 1, approval for 3 persons
Specifications:
- Application Areas: Working on masts and towers
- Material: Steel
- Net Weight: 0.95 kg
- Gross Weight: 1.03 kg
- Maximum Number Of Persons: 3
- Maximum Load: 500 kg
- Colour: Yellow
- Anchor Point Type: Stationary anchor point
-
Mounting Type: Concrete screw
- Type Mounting Base: Concrete

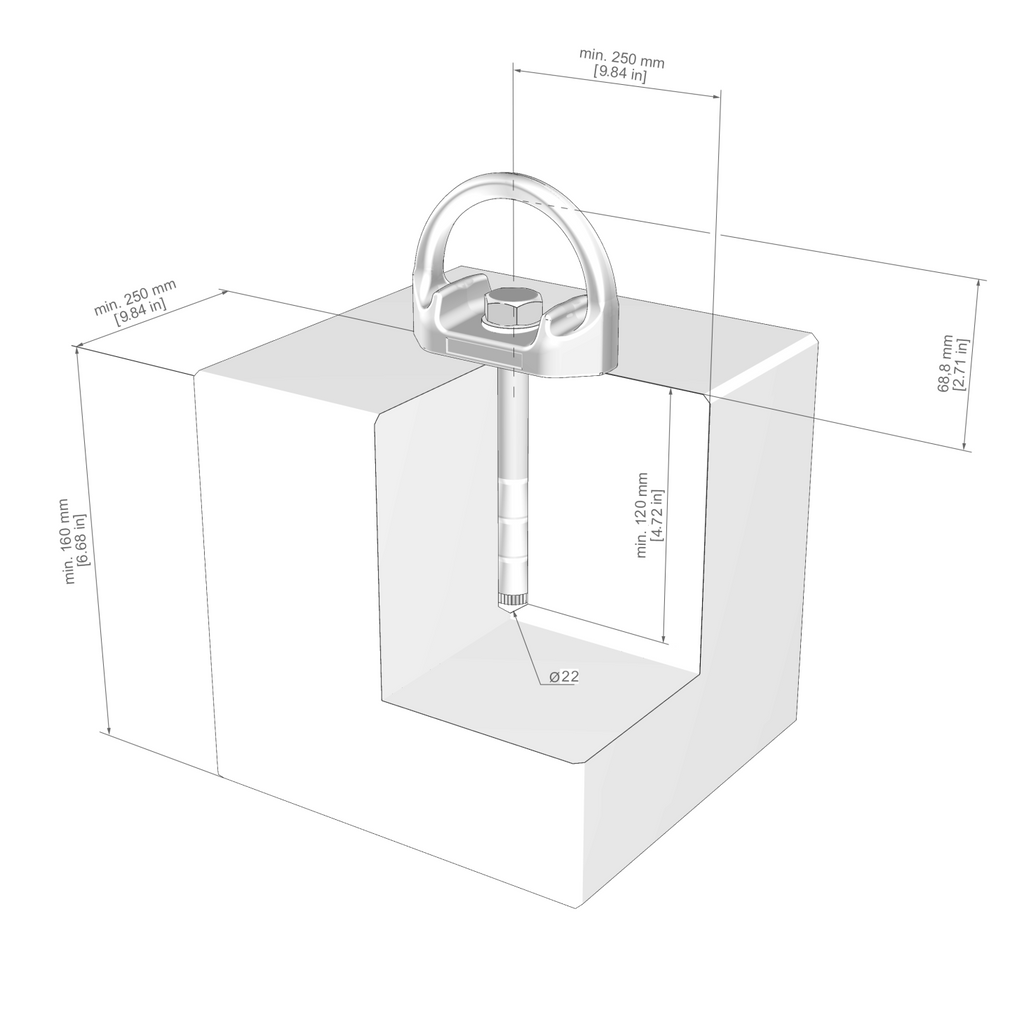

- Thickness Mounting Base: 160mm
- Minimum Area Required: 1.07 cm2
-
Rope Access Technique: Yes

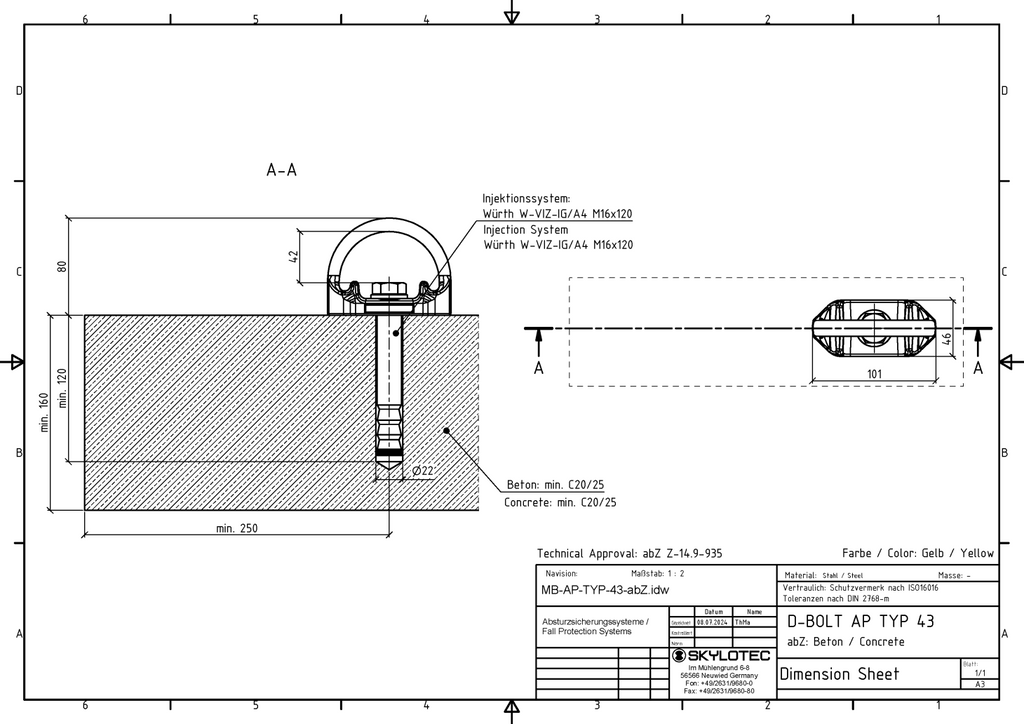

- Diameter Bore: 16mm
- Construction Height: 80mm
- Foot Plate Length: 101mm
- Foot Plate Width: 46mm
- Standards: ABZ, CEN/TS 16415, EN 795:2012/A
