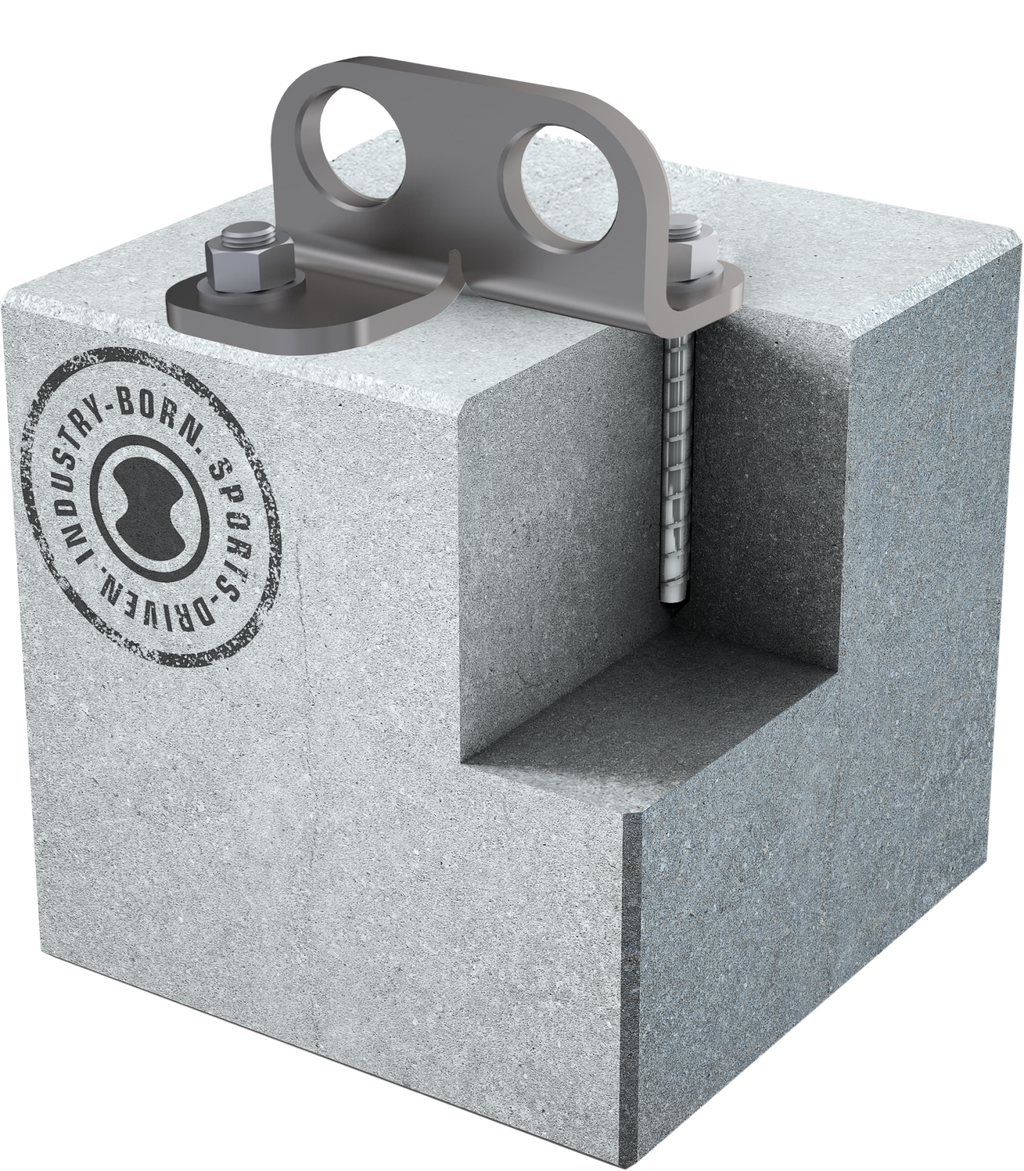

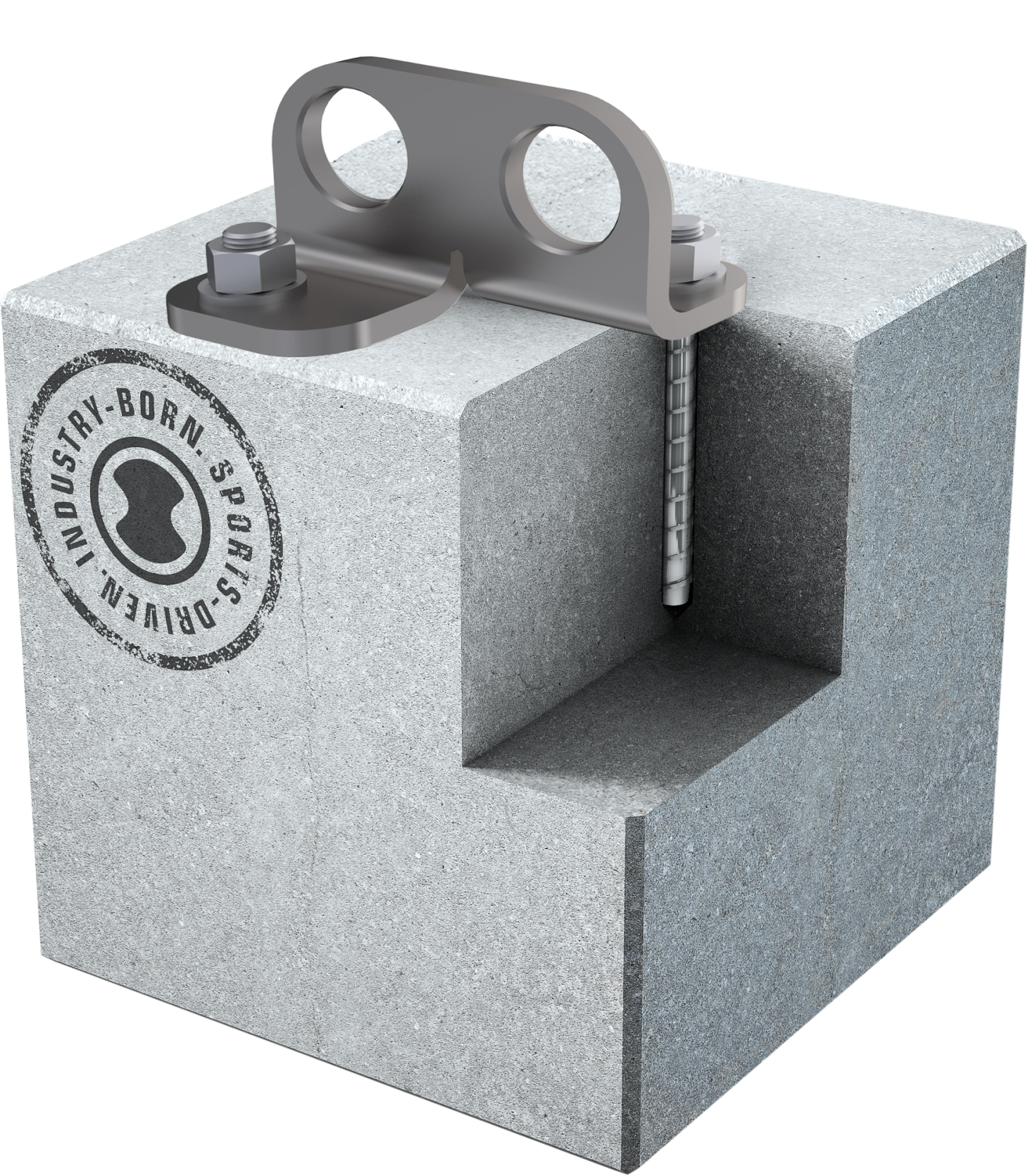

The corrosion-resistant single anchor point SKYFIX AP-TYP-63, made of stainless steel, has been specially developed for use on concrete substrates. It has a European Technical Assessment (ETA -16/0790) and is tested and certified according to EN 795: 2012, CEN/TS 16415: 2013. It can be quickly and reliably attached to any concrete substrate (grade min. C20/25, dmin.=120 mm) using the supplied fixed anchors. It can be loaded in all directions and, with its two generously dimensioned openings, can protect up to three people from falling with their PPE. It is attached using 2 fixed anchors. The minimum thickness of the base is 120 mm.
- Single anchor point, especially for concrete substrates
-
Fastening with, fixed anchor, AK 1, approval for 3 persons
Specifications:
- Material: Stainless Steel
- Net Weight: 0.56 kg
- Gross Weight: 0.65 kg
- Maximum Load: 500 kg
- Maximum Number Of Persons: 3
- Colour: Silver
- Rope Access Technique: Yes
- Anchor Point Type: Stationary anchor point
- Mounting Type: Fix anchor
-

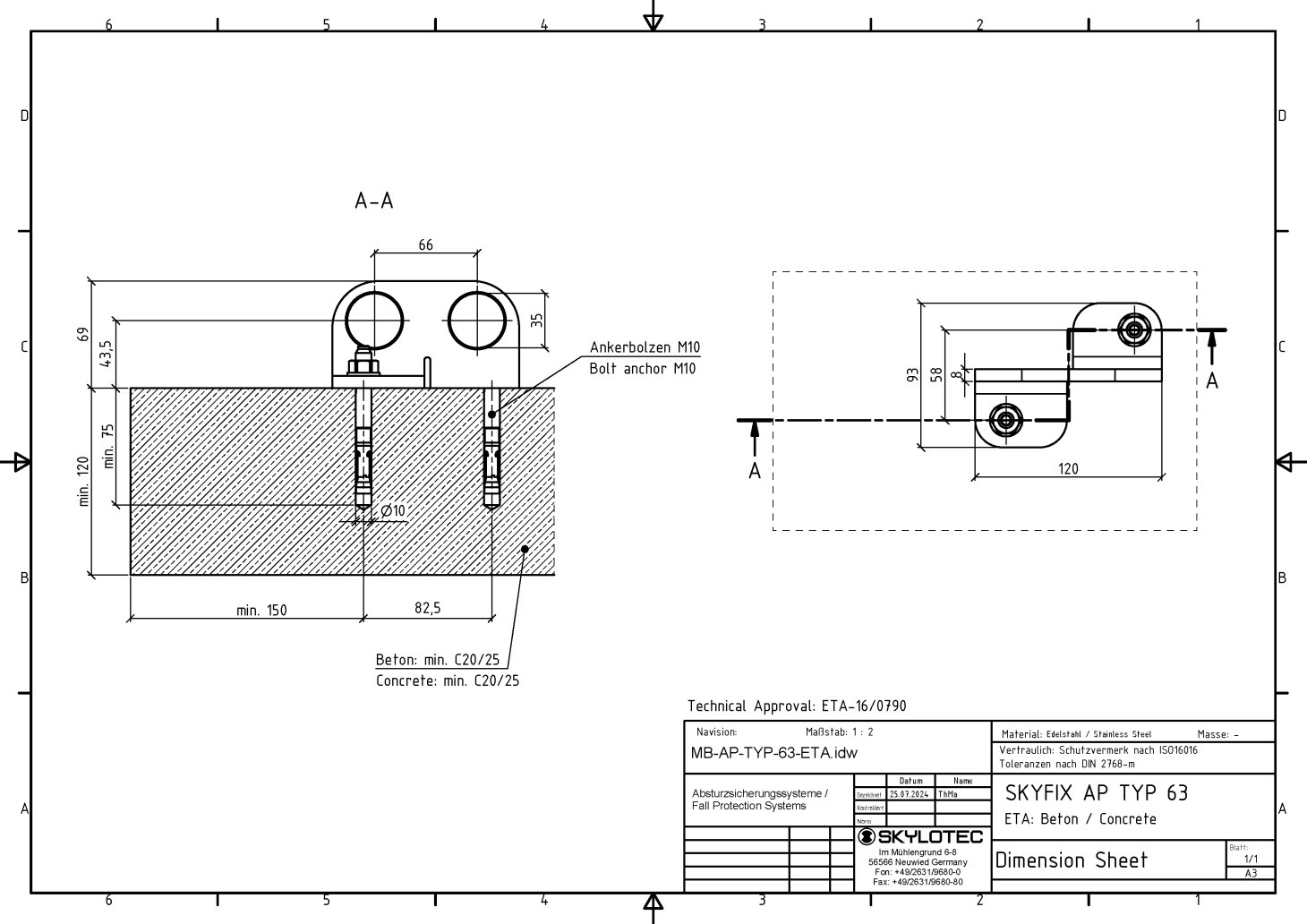

Type Mounting Base: Concrete
- Thickness Mounting Base: 120mm
- Diameter Bore: 10mm
- Hole Spacing A: 58mm
- Hole Spacing B: 60mm
-
Construction Height: 69mm
- Foot Plate Length: 120mm
- Foot Plate Width: 93mm
- Standards: EAD 331072-00-0601
