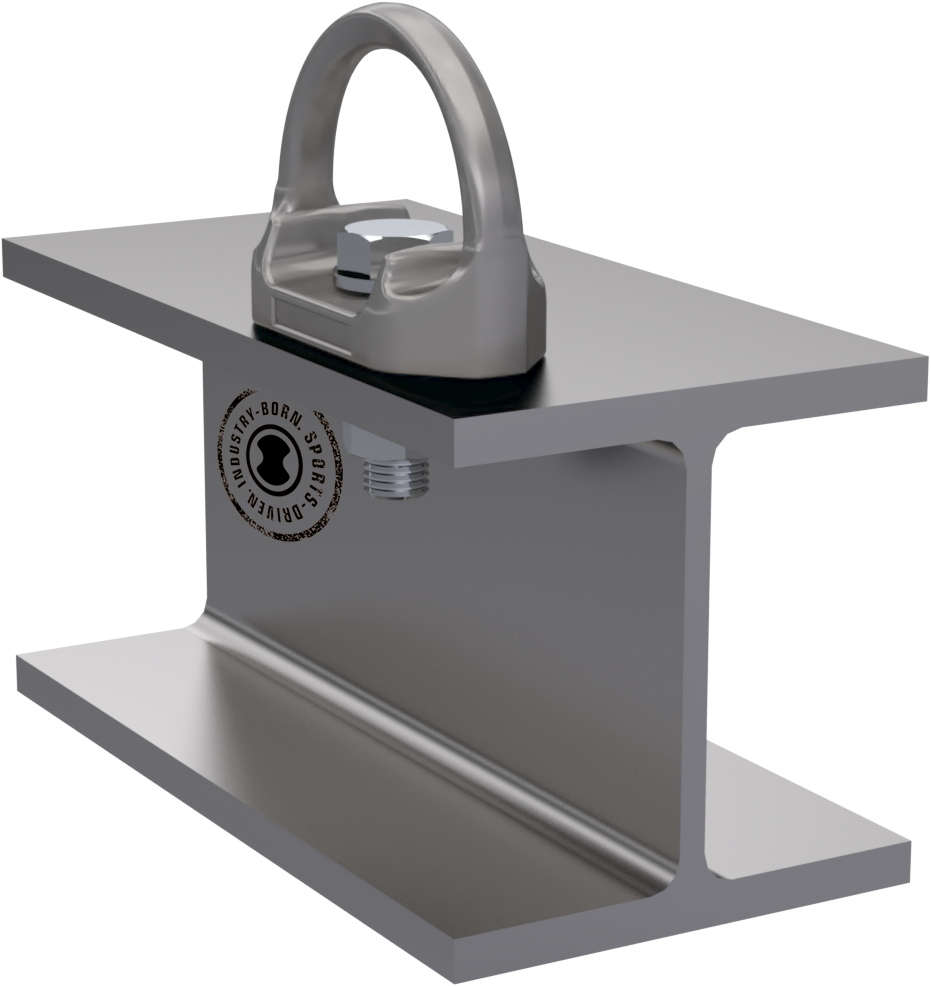

The single anchor point D-BOLT AP-TYP-50 is tested and certified according to EN 795, CEN/TS 16415. It is made of stainless steel 1.4401, glass bead blasted and was specially developed for use on steel substructures. The steel substructure must correspond to the expected loads of min. 14 kN. It is fastened with an M16 hexagonal bolt, washer and nut (included in delivery). It can be loaded in all directions and can secure up to three persons with their PPE from falling.
- Single anchor point, especially for steel surfaces
- Fastening with hexagonal bolt M16, washer and nut (included in delivery), AK 1, approval for 3 persons
Specifications:
- Application Areas: Working on masts and towers
- Material: Stainless Steel
- Net Weight: 0.84 kg
- Gross Weight: 0.93 kg
- Maximum Number Of Persons: 3
- Maximum Load: 500 kg
- Colour: Silver
- Rope Access Technique: Yes
- Anchor Point Type: Stationary anchor point
- Type Mounting Base: Steel
- Mounting Type: Machine screws
- Thickness Mounting Base: 160mm

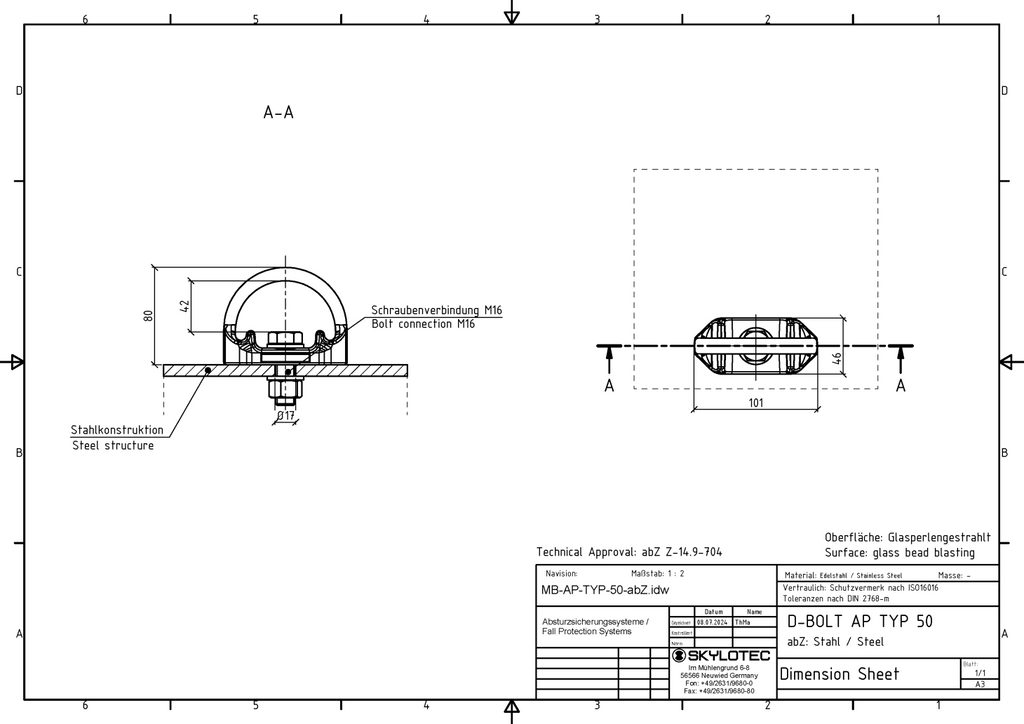

- Hole Spacing A: 23mm
- Hole Spacing B: 50mm
- Diameter Bore: 18mm
-
Diameter Pillar: 13mm
- Construction Height: 80mm
- Foot Plate Length: 101mm
- Foot Plate Width: 46mm
- Standards: ABZ, CEN/TS 16415, EN 795:2012/A
