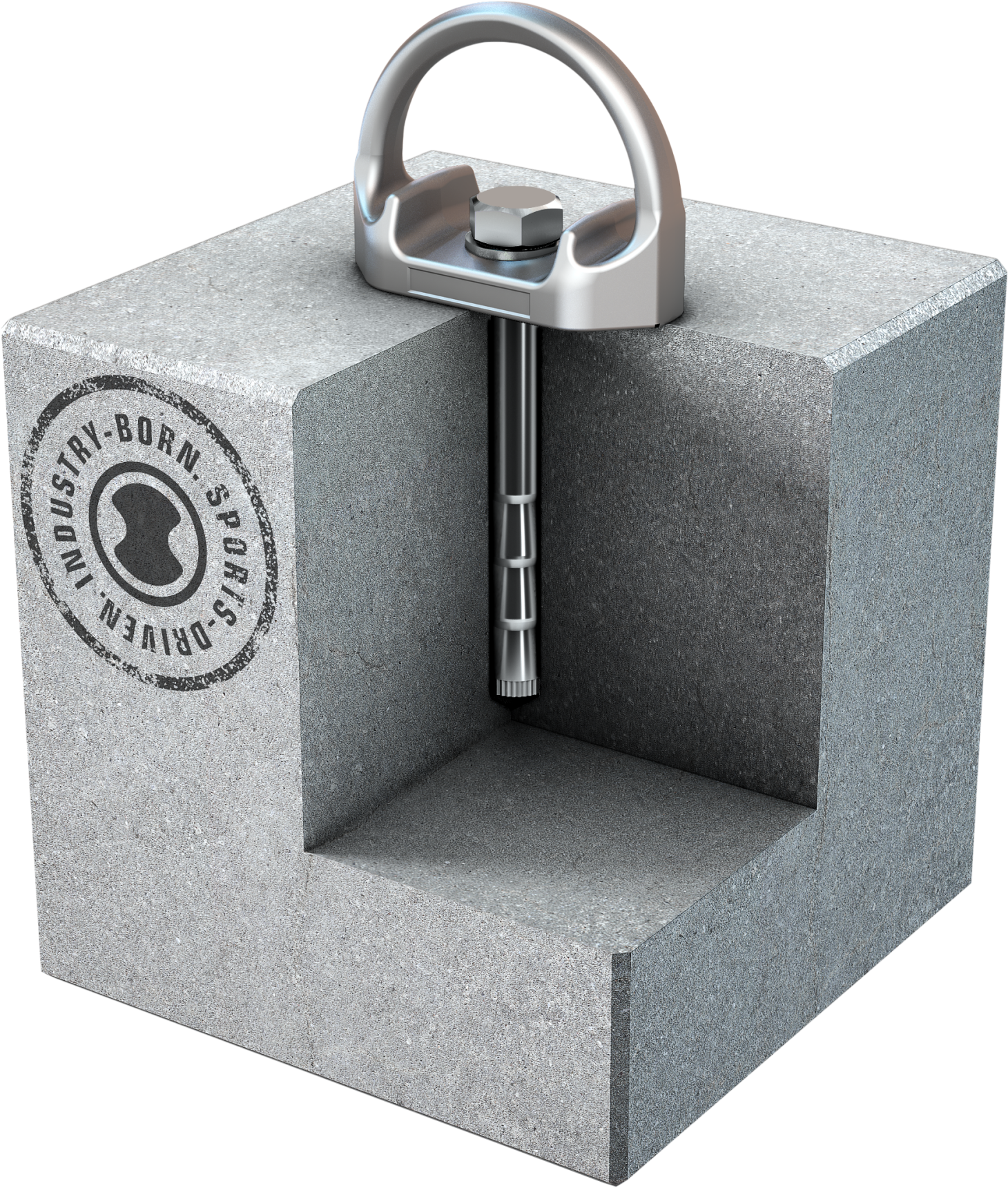

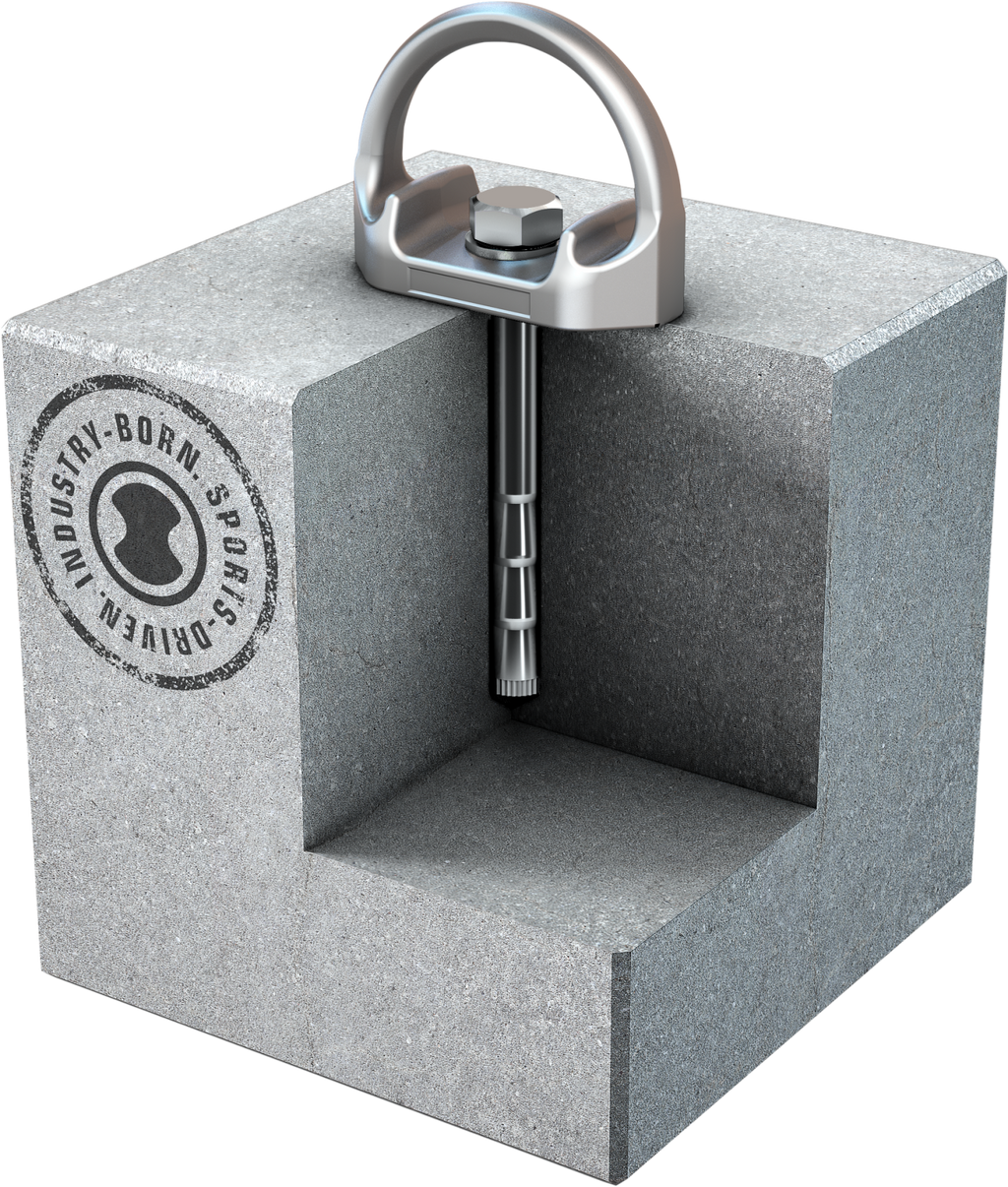

The single anchor point D-BOLT AP-TYP-49 has a European Technical Assessment (ETA -16/0790) and is tested and certified according to EN 795: 2012, CEN/TS 16415: 2013. It is made of stainless steel 1.4401, is glass bead blasted and has been specially developed for use on concrete substrates (grade min. C20/25, dmin.=160 mm). It is fixed with an anchor rod M16 with internal thread, which is glued into the concrete with an approved injection mortar (not included in delivery). It can be loaded in all directions and can secure up to three people from falling with their PPEgA. The minimum thickness of the base is 160 mm.

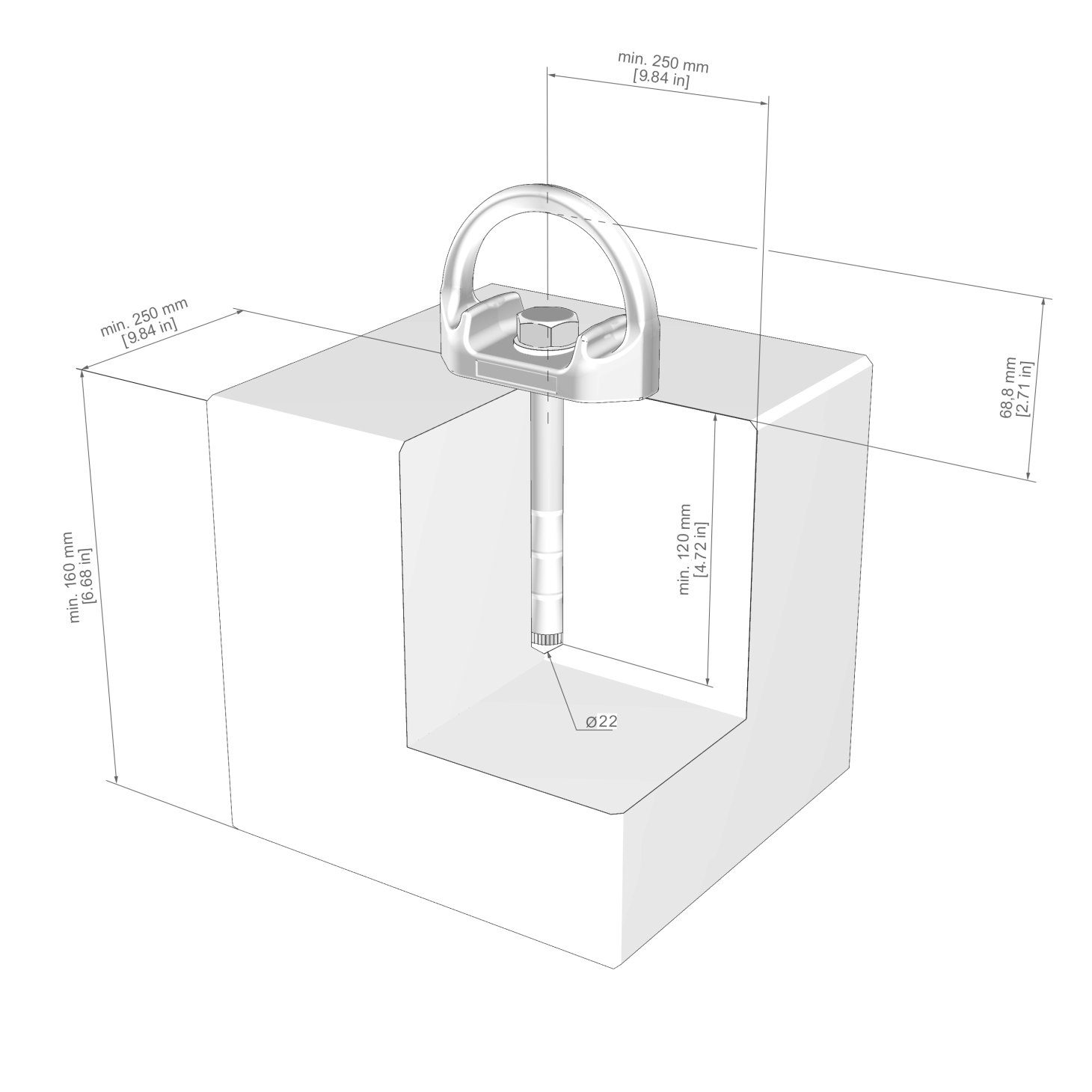

- Single anchor point, especially for concrete substrates (dmin: 160 mm).
- Fixing of the anchor rod with internal thread is done by means of injection mortar (not included in the scope of delivery) (adhesive anchor), AK 1, approval for 3 persons
Specifications:
- Application Areas: Working on masts and towers
- Material: Stainless Steel
-
Weight: 0.72 kg
- Maximum Number Of Persons: 3
- Maximum Load: 500 kg
- Colour: Silver
- Anchor Point Type: Stationary anchor point
- Type Mounting Base: Concrete
- Thickness Mounting Base: 160mm
-
Rope Access Technique: Yes

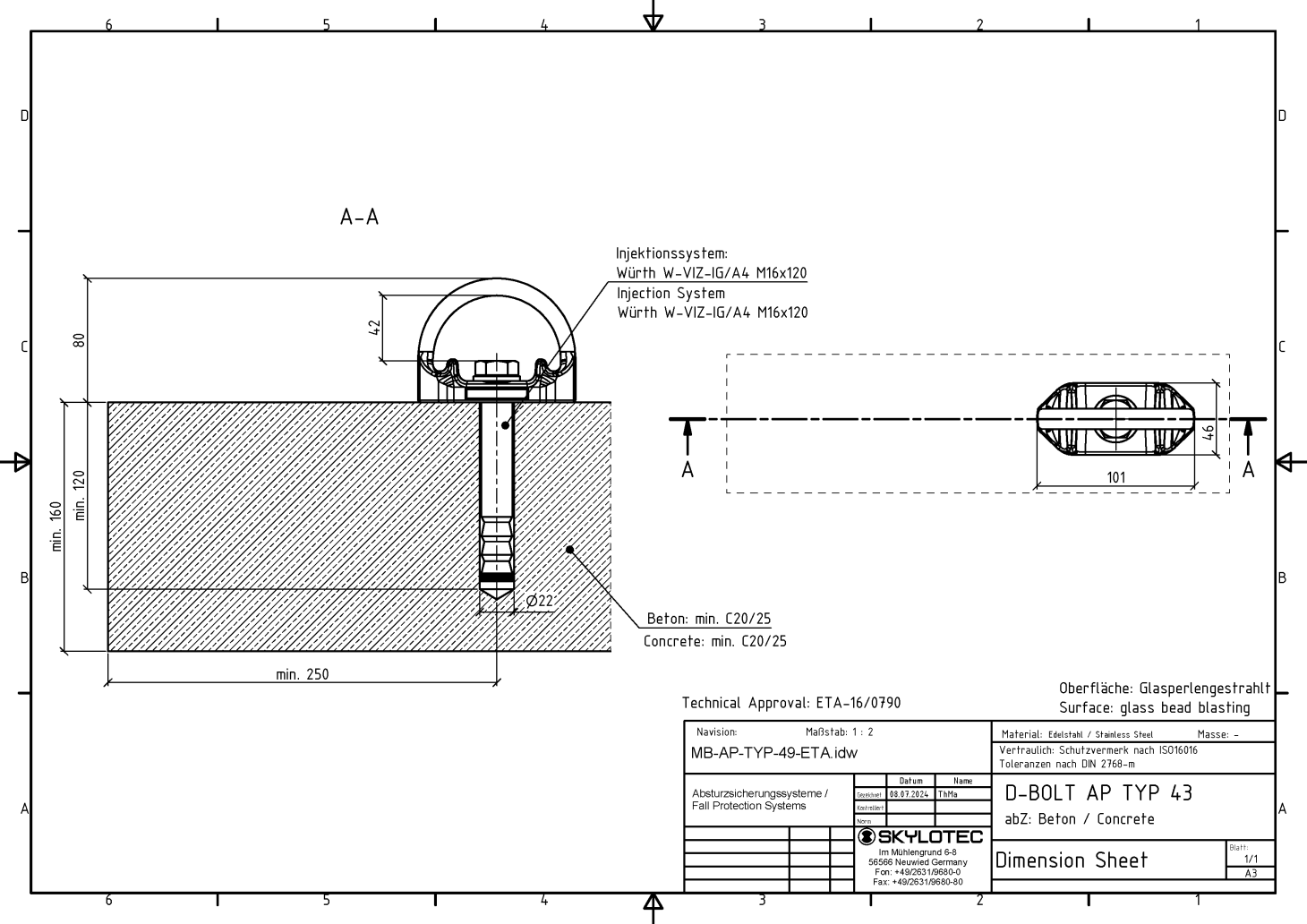

- Diameter Bore: 16mm
- Construction Height: 80mm
- Foot Plate Length: 101mm
- Foot Plate Width: 46mm
- Standards: CEN/TS 16415, EAD 331072-00-0601, EN 795:2012/A
