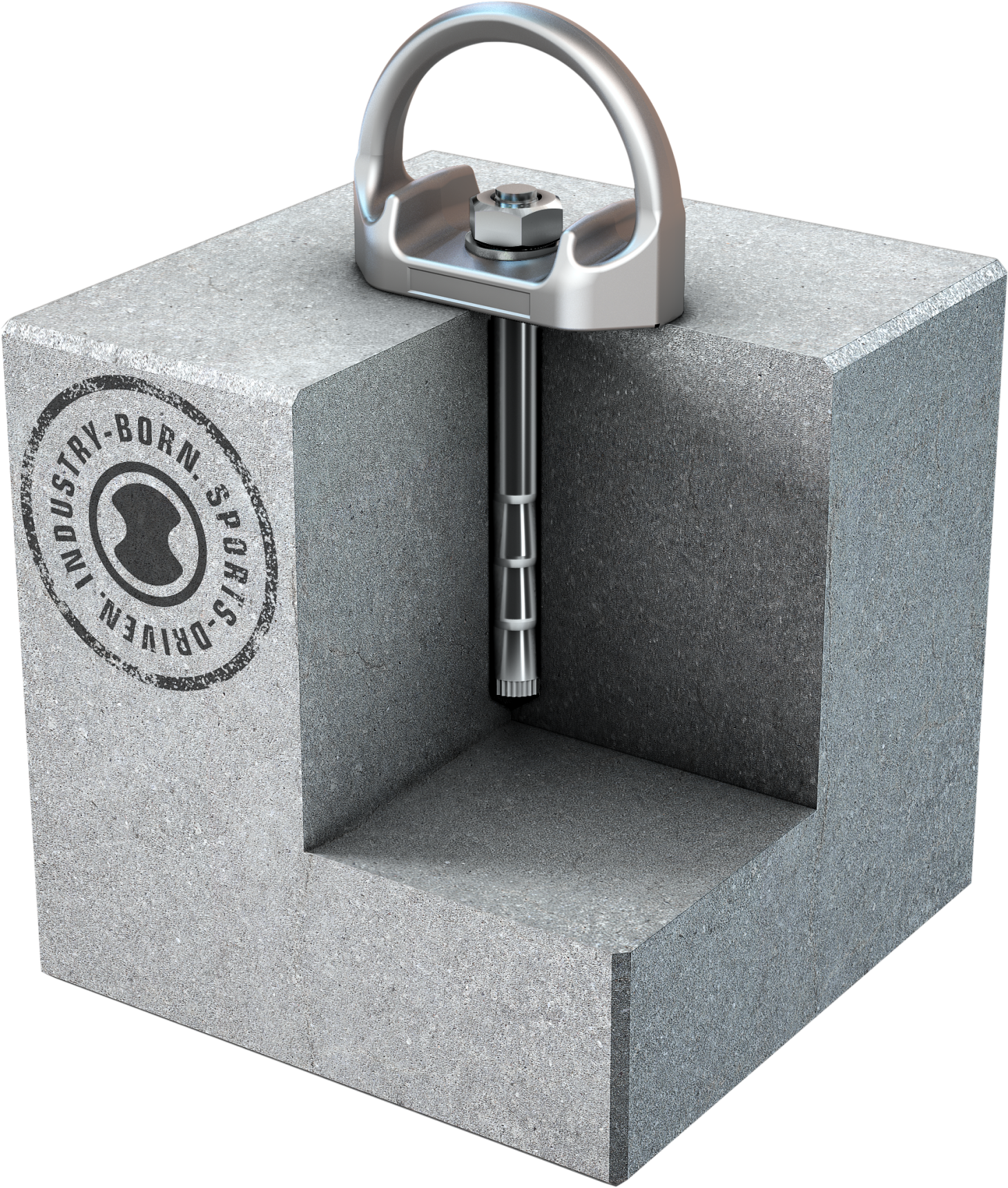

The single anchor point D-BOLT AP-TYP-46 has a European Technical Assessment (ETA -16/0790) and is tested and certified according to EN 795: 2012, CEN/TS 16415: 2013. It is made of stainless steel 1.4401, glass bead blasted and specially designed for use on concrete substrates (grade min. C20/25, dmin.=170 mm). It is fixed with an M16 anchor rod with external thread, which is glued into the concrete with an approved injection mortar (not included). It can bear loads in all directions and can secure up to three people from falling with their PPEgA. The minimum thickness of the base is 170 mm.
- Single anchor point, especially for concrete substrates (dmin: 170 mm)
- Fixing of the anchor rod with internal thread is done by means of injection mortar (not included in delivery) (adhesive anchors), AK 1, approval for 3 persons
Specifications:
- Material: Stainless Steel
- Net Weight: 0.63 kg
- Maximum Number Of Persons: 3
- Maximum Load: 500 kg
- Colour: Silver
- Anchor Point Type: Stationary anchor point
- Type Mounting Base: Concrete
- Thickness Mounting Base: 170mm
-
Rope Access Technique: Yes

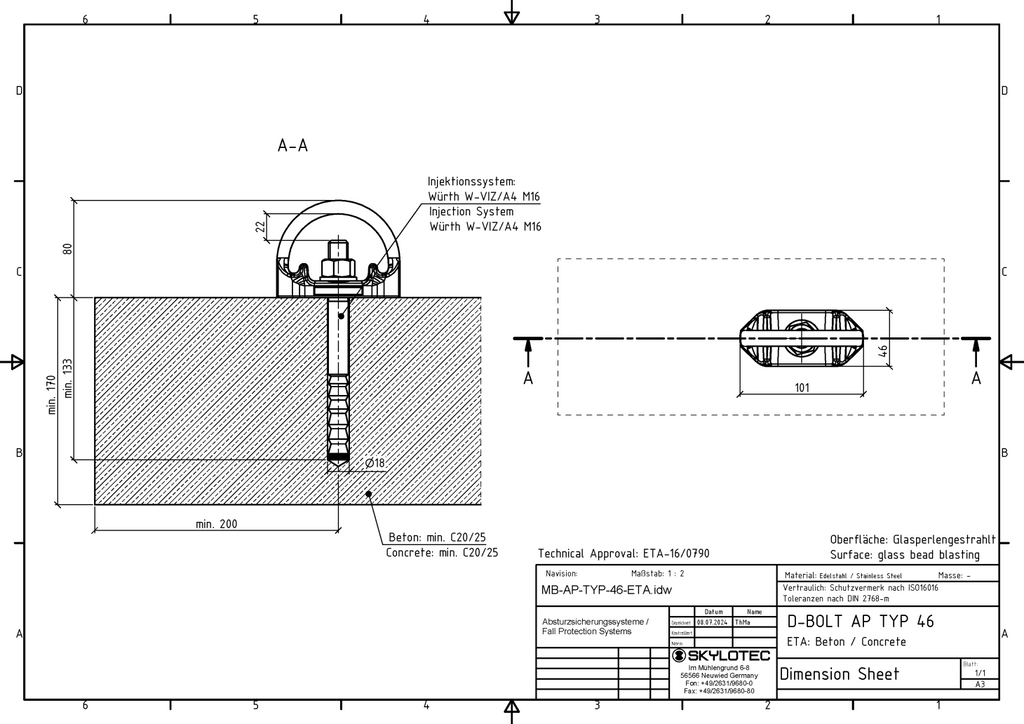

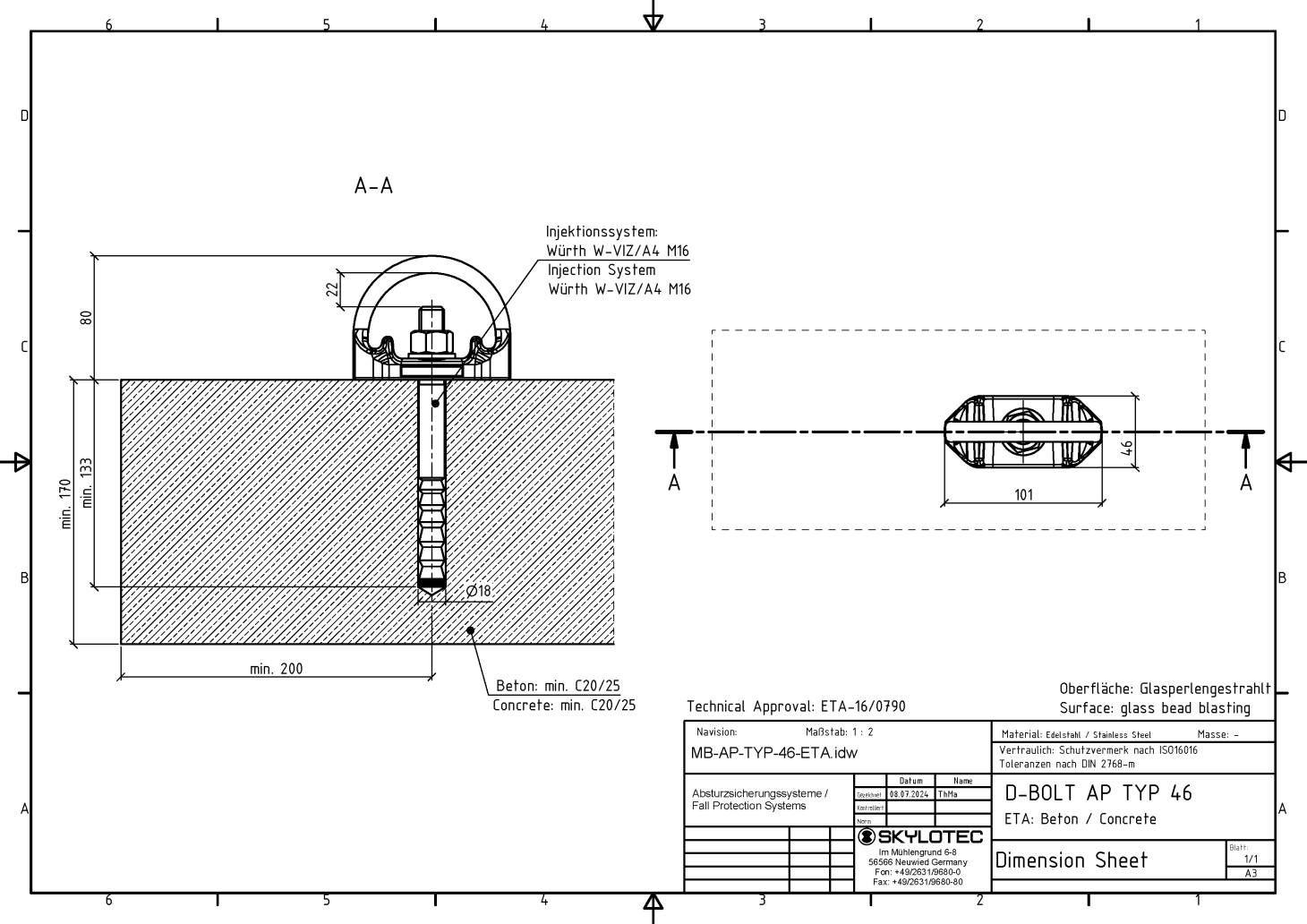

- Hole Spacing A: 23mm
- Hole Spacing B: 50mm
- Diameter Bore: 16mm
- Diameter Pillar: 13mm
- Construction Height: 80mm
- Foot Plate Length: 101mm
- Foot Plate Width: 46mm
- Standards: CEN/TS 16415, EAD 331072-00-0601, EN 795:2012/A
