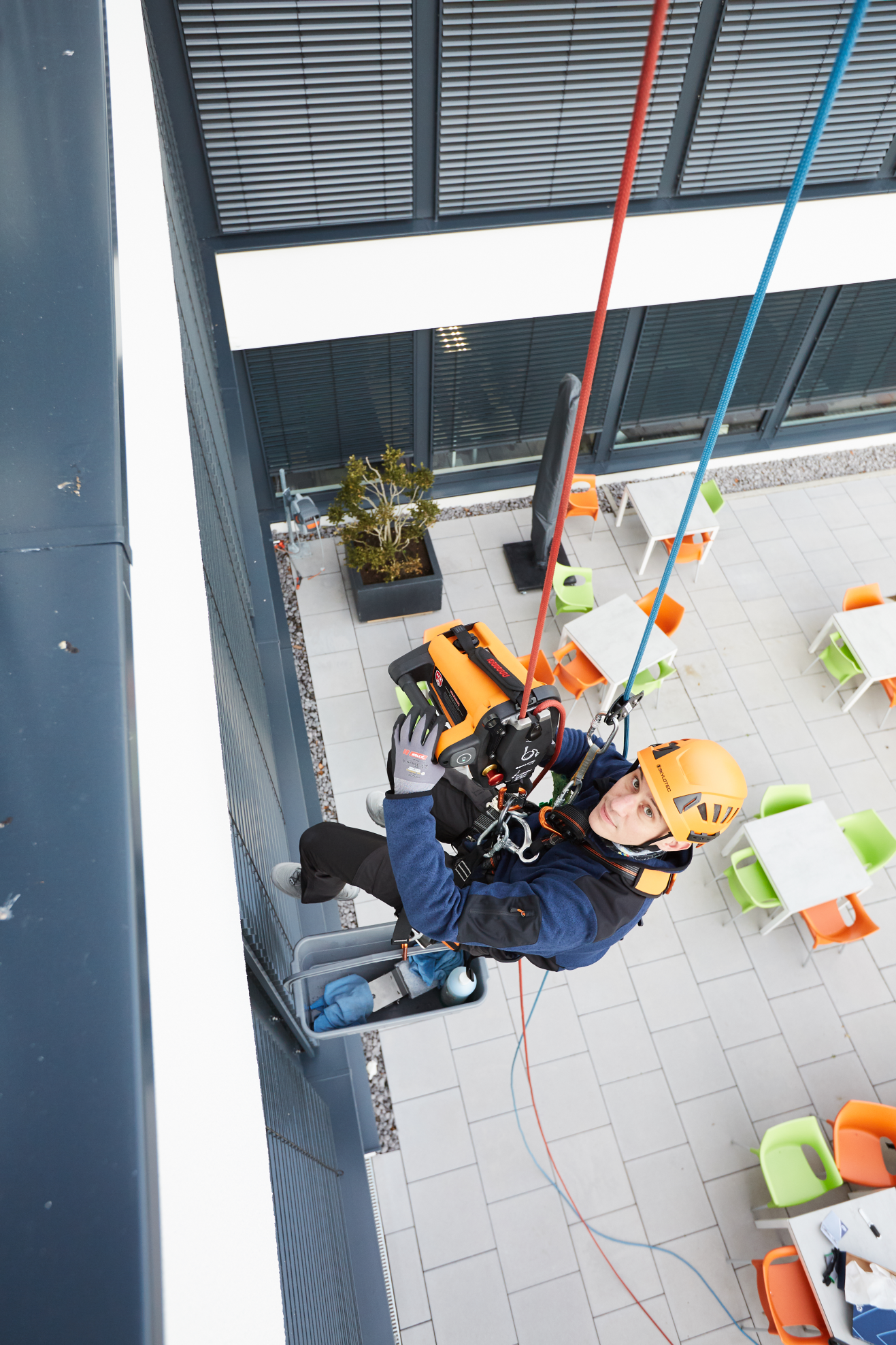

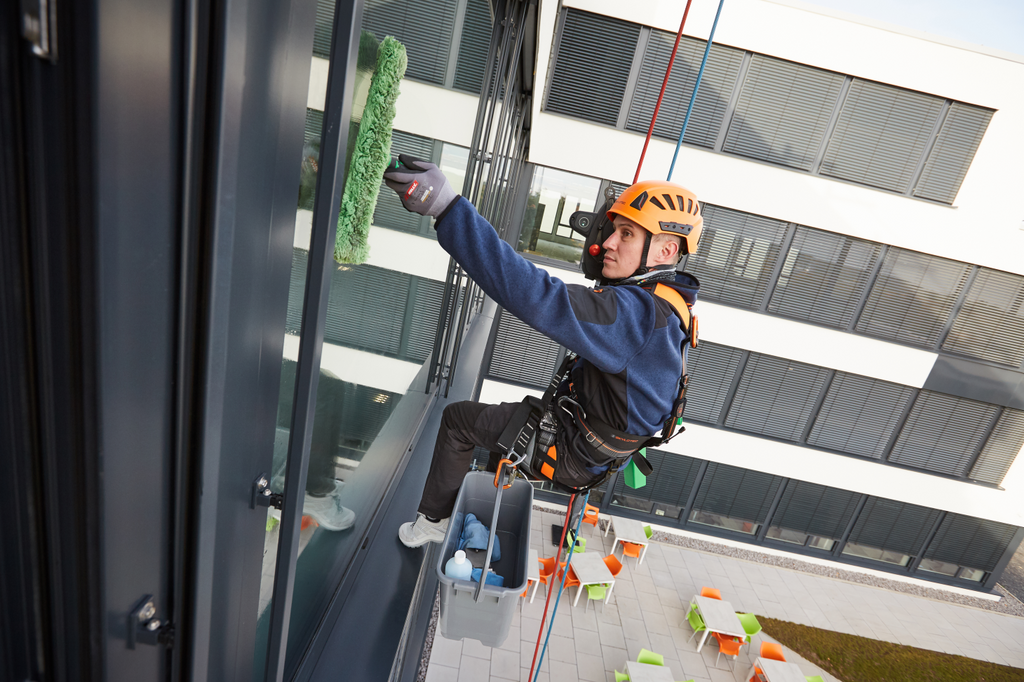

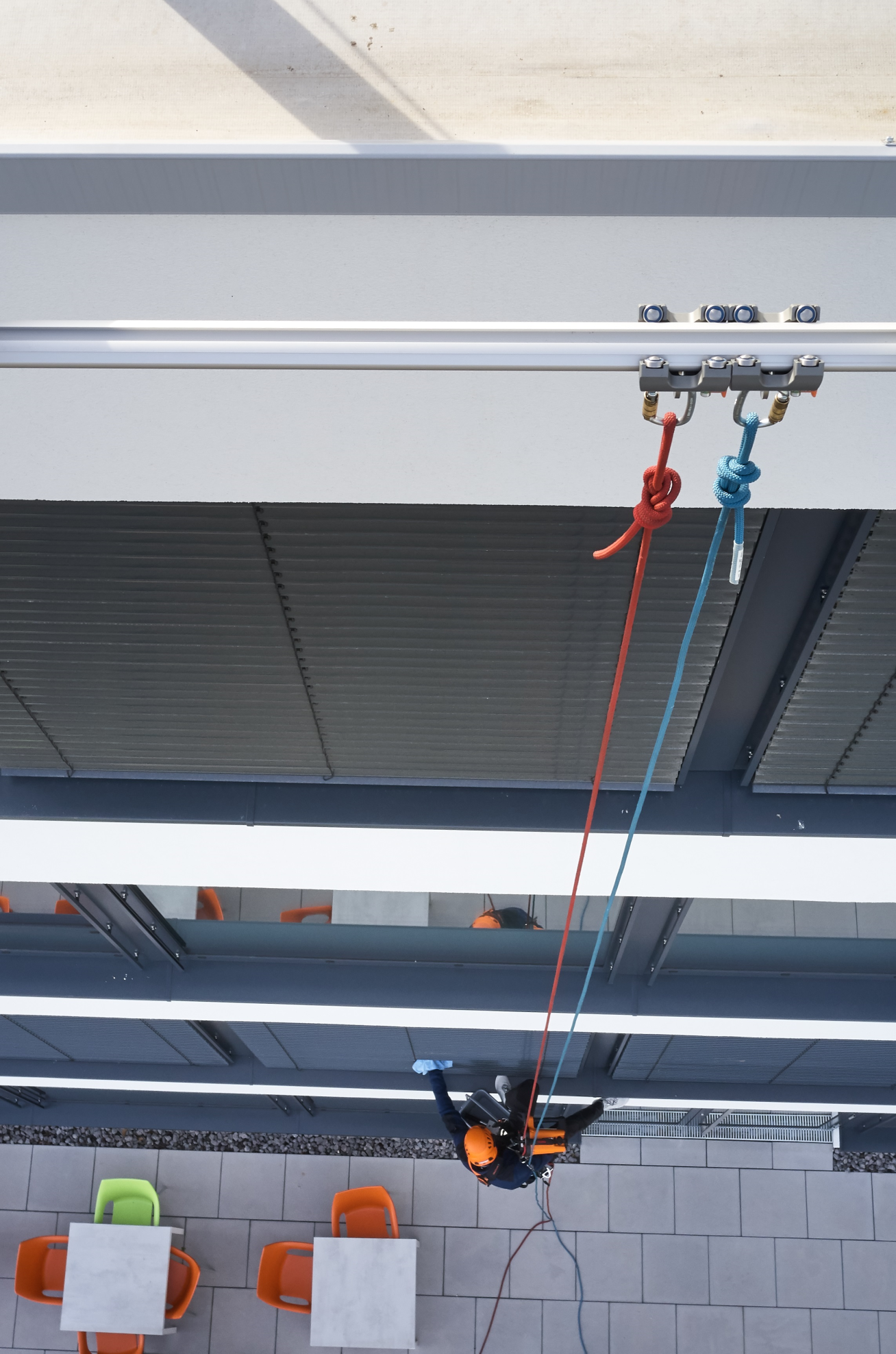

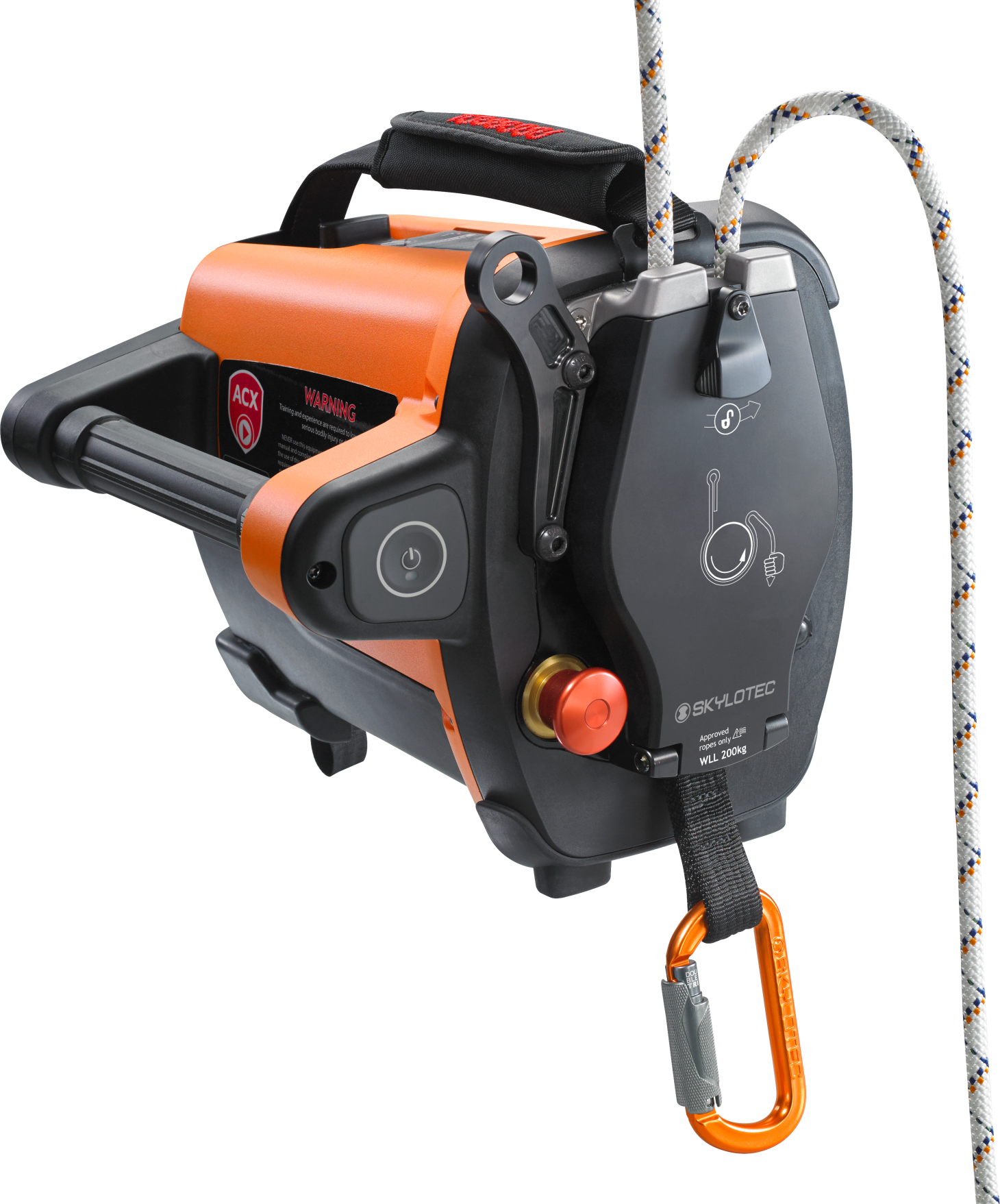

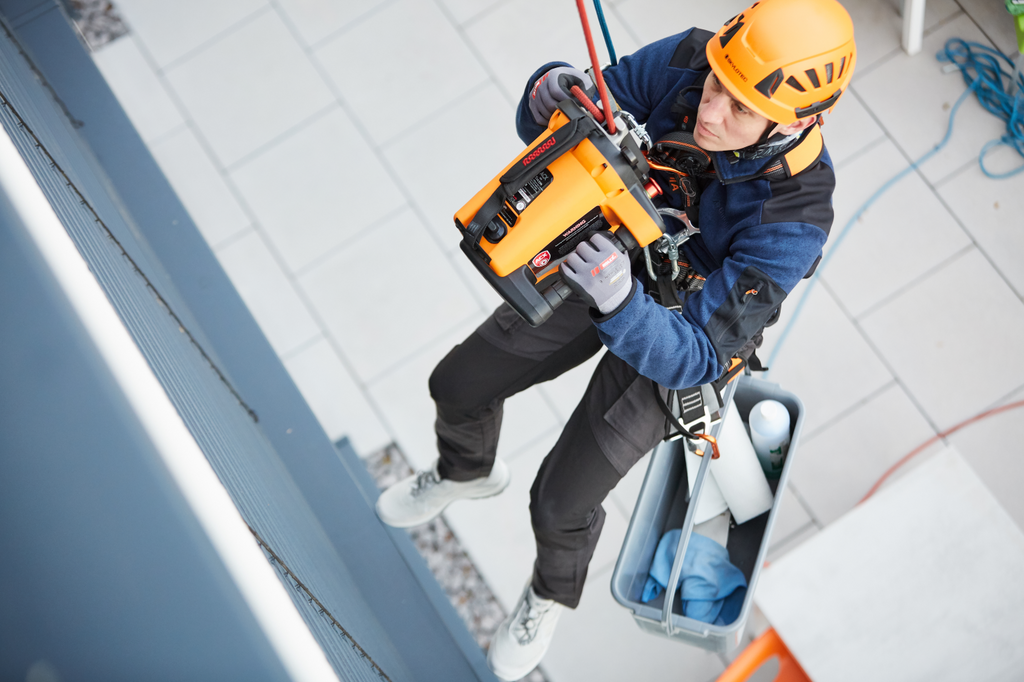

The ACX battery-powered hoist is a motorised system to ensure the transport of persons or loads to areas that are difficult to access and where occasional or recurring work is carried out. ACX is used, among other things, for cleaning facades or windows, for the maintenance of complex building structures, for the rotor blade maintenance of wind turbines or for transporting loads on masts. The ACX POWER ASCENDER considerably simplifies and accelerates work on complex structures and makes expensive access systems or lifting platforms superfluous. Countless rescue scenarios can also be carried out efficiently and with minimum effort with the ACX. ACX forms a highly flexible system for easy and cost-efficient cleaning or maintenance. In an emergency, the ACX can be controlled by remote control. The operation and use of the ACX can be learned in special training courses.

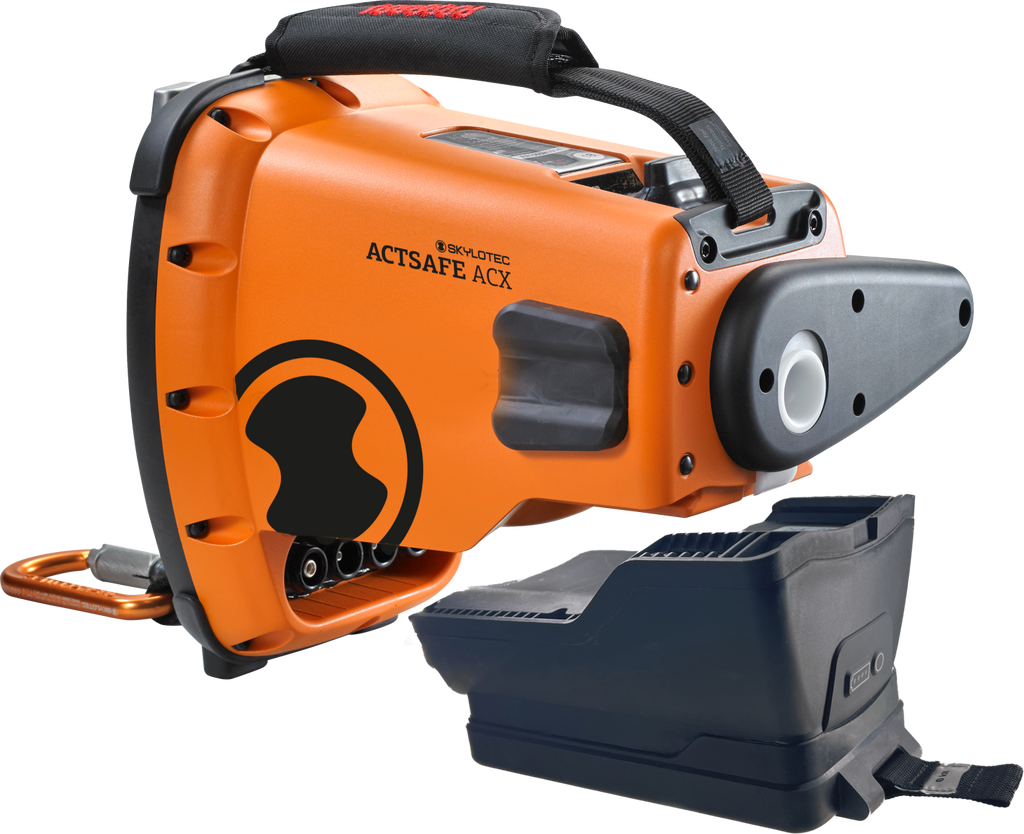

- All-in-one set: Includes two high-capacity batteries, remote control and a charger
- Extended performance: With High Capacity Battery for increased range
Specifications:
- Application Areas: Working on masts and towers, Off Shore Industry, Wind energy, Route construction, Working in confined spaces, Various, Facades cleaning, Scaffolding, Roofers, Rope access, Work on roofs and facades, Rescue
- Gross Weight: 27 kg
- Net Weight: 12.5 kg
-
Material: Aluminium, Nylon, Steel
- Colour: Orange

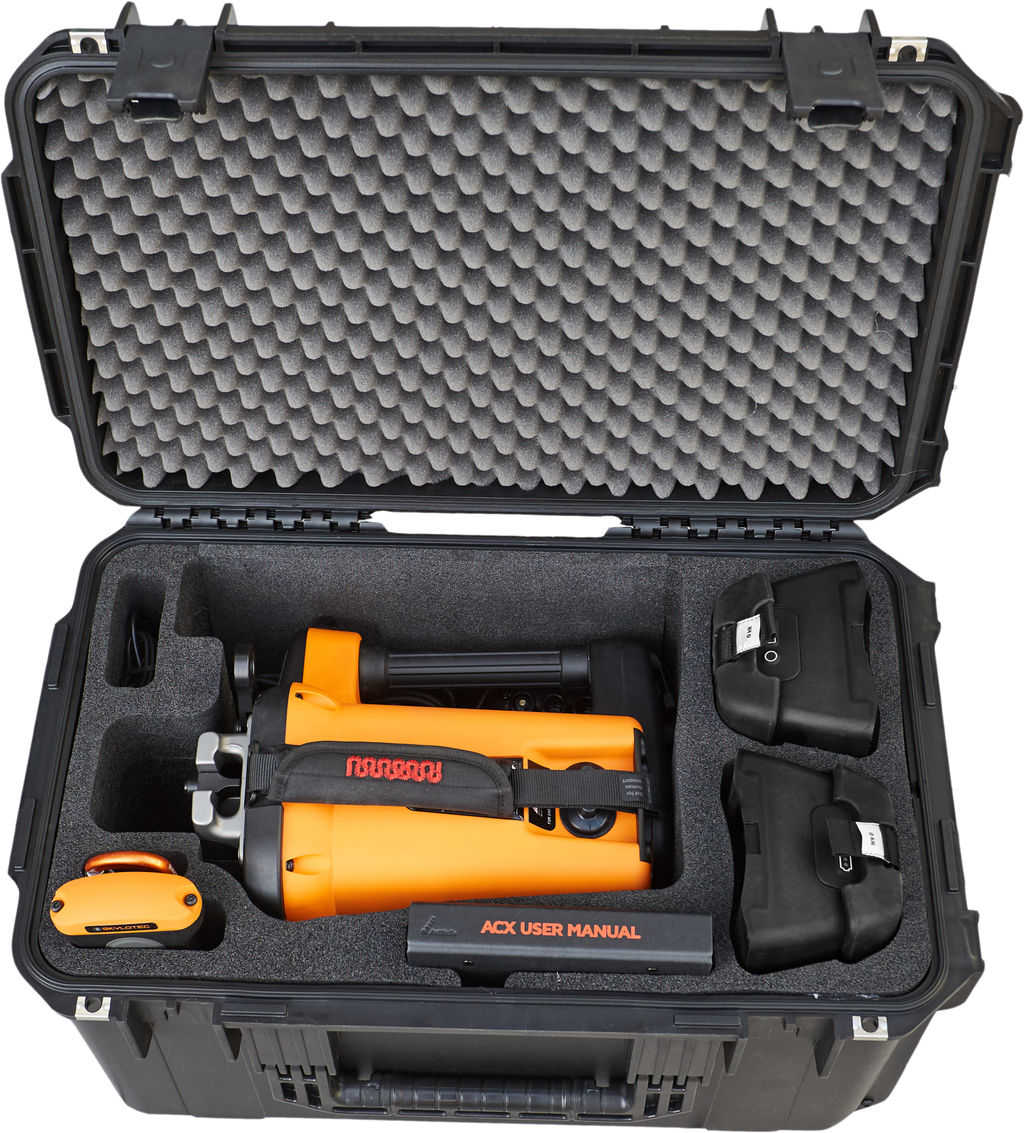

- Includes two high-capacity batteries, remote control and a charger
- Number Of Rechargeable Batteries: 2
- Emergency Descent Function: Yes
- Emergency Stop Function: Yes
- Energy Source: Removeable Battery, POA-004 power supply
- Battery range at 20° C & 100 kg load: 550m
- Charging Time: 90 minutes
- Max. Ascent Rate: 24 m/min
- Min. Ascent Rate: 1 m/min
- Maximum Descent Speed: 25 m/min
- Minimum Descent Speed: 1 m/min
- Max. Noise Level: 76 dB(A)
- Min. Noise Level: 0 dB(A)

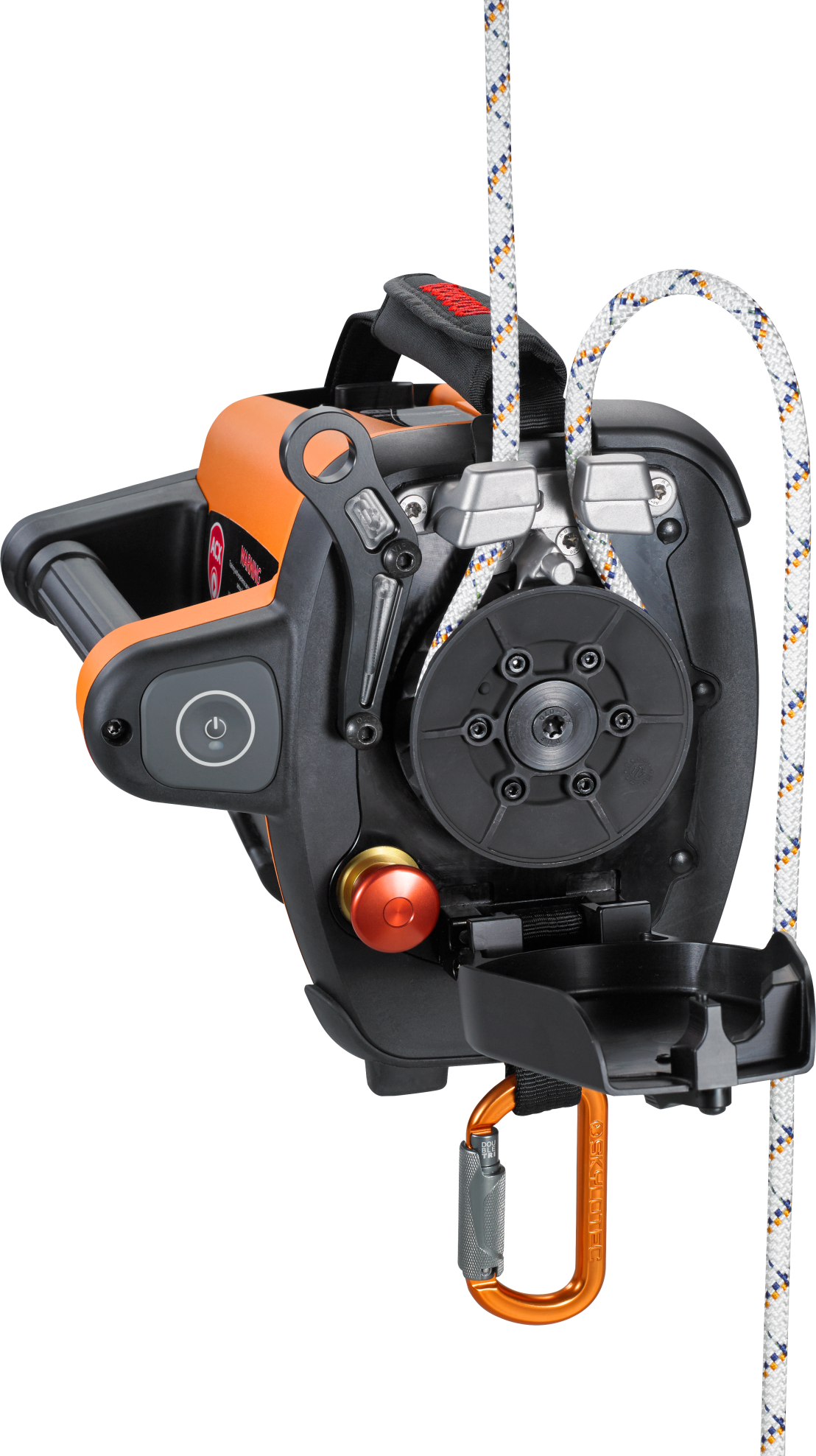

- Compatible Rope Diameter: 11mm

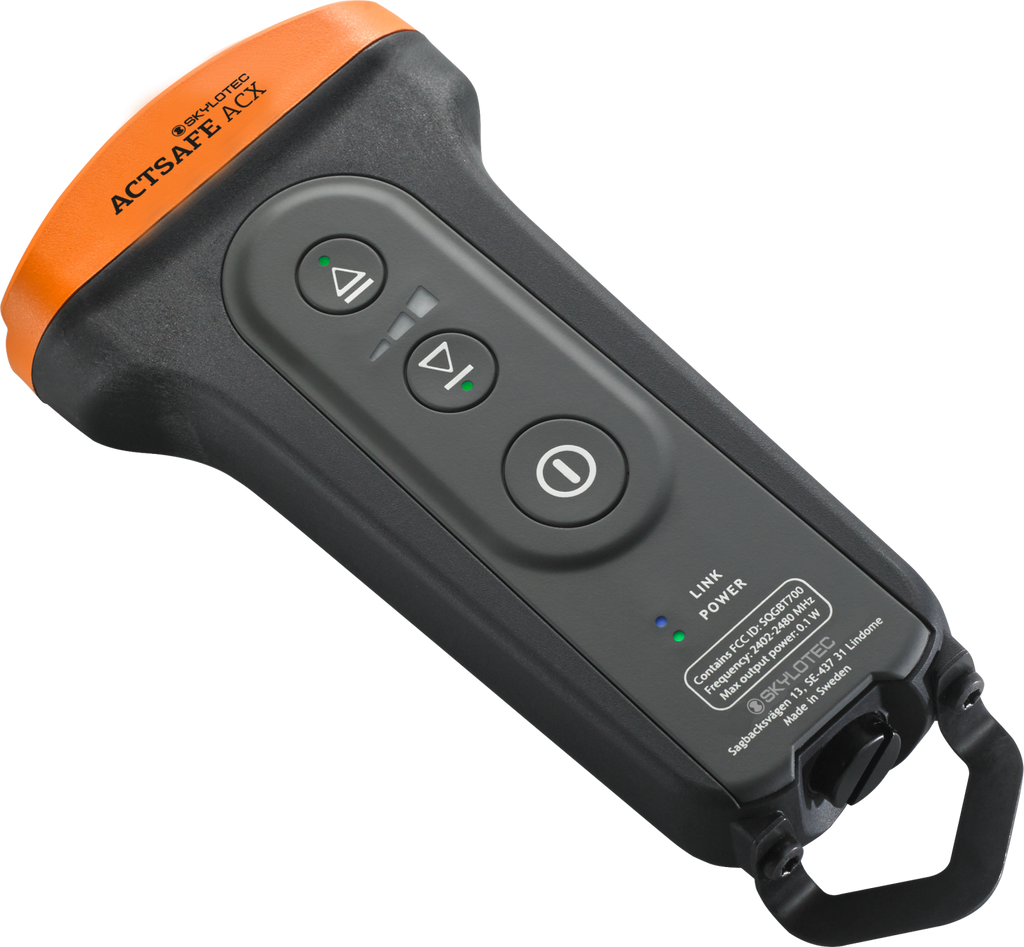

- Remote Control Range: 150m
- Working Load Limit: 220 kg
- Product Height: 42cm
- Product Length: 63cm
- Product Width: 37cm
- Regional Charger: EU
- Water Dust Resistance: IP 55
